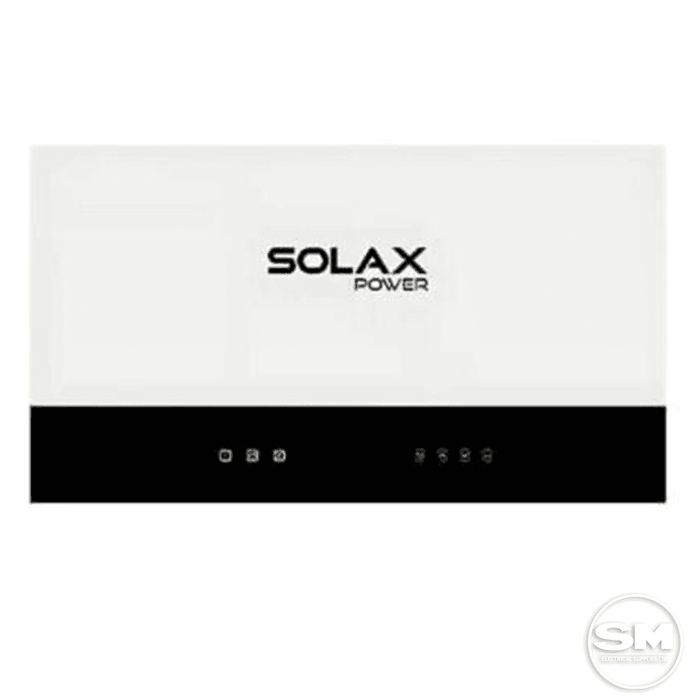

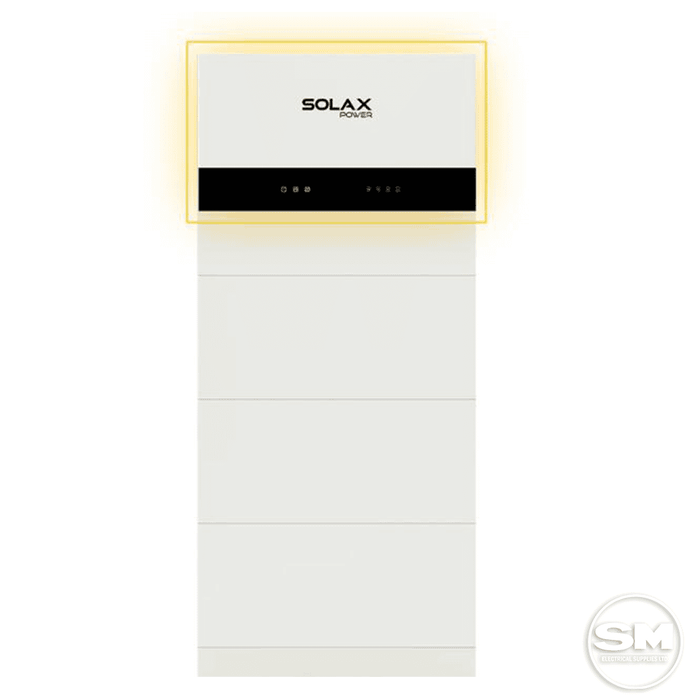

Solax X1-IES 3.7kW 1PH Hybrid Inverter

The Solax X1-IES is a 3.7kW single-phase hybrid inverter with expandable battery storage ranging from 5 to 20 kWh. It combines reliable performance with advanced features including virtual power plant support, micro-grid capability, and intelligent scheduling. Designed for residential energy independence with straightforward installation.

Specifications & Attributes

• All-in-one, plug-and-play design.
• Max. 20A DC input current for high power solar panel.
• Max. 50A charge/discharge current.
• 200% oversizing and 200% PV input power.
• Up to 200% EPS output for 10s.
• Low start-up voltage for longer operation.
• Cycle life > 6000 times.
• Smart loads management (e.g., heat pump, smart EV charger).
• Micro-grid support for real-time grid/off-grid balancing.
• Wireless meter compatibility.
• Global MPP scan for optimal energy harvest.
• IP66 protection degree.
• Type II SPD on AC&DC side.
• AFCI protection (optional).
• UPS-level switchover time <10ms
