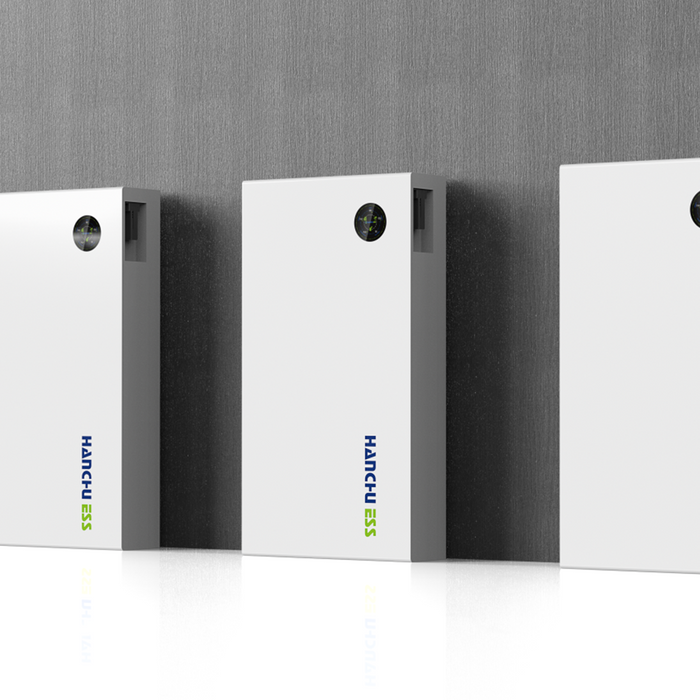

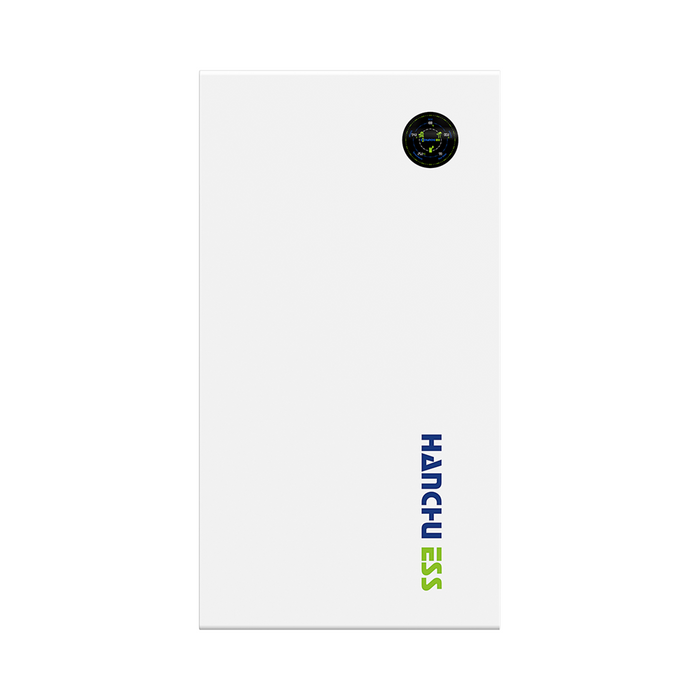

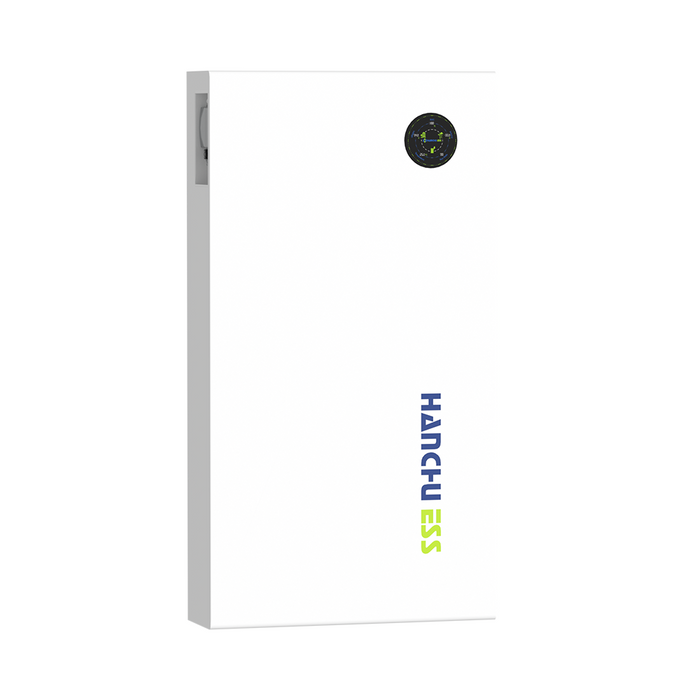

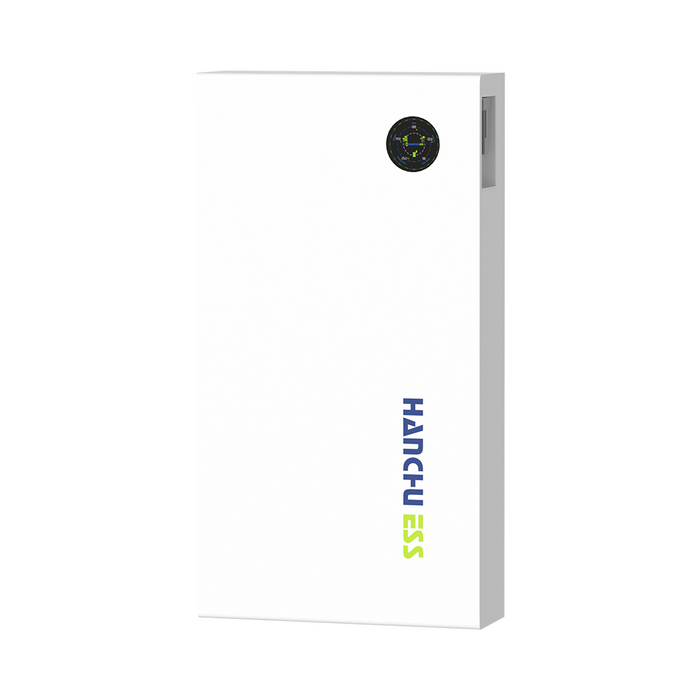

HC-9.4-LV-BAT-HEAT Hanchu 9.4 LV Lithium Battery (with Built-in Heater)

The Hanchu ESS 9.4kWh Low Voltage Battery is a reliable home energy storage solution designed for residential solar PV systems. Using advanced LiFePO₄ lithium iron phosphate technology, it offers safe, efficient, and long-lasting battery performance for storing excess solar energy and reducing reliance on the grid.

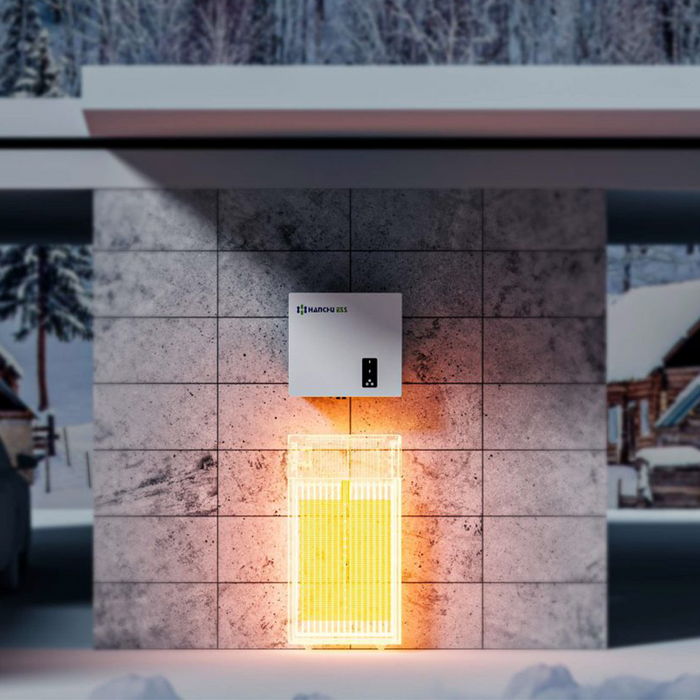

With a 9.4kWh capacity, 95% depth of discharge, and scalable parallel operation, this battery is ideal for homeowners looking to maximise solar self-consumption, support backup power, and build a flexible energy storage system. Its IP65-rated enclosure and built-in heating function make it suitable for a wide range of indoor and outdoor installations.

Datasheet

General Data & Features

• Cell Type: Blade LFP
• Nominal Energy: 9.4kWh
• Maximum Parallel Number: 16
• Nominal Voltage: 51.2V
• Operating Voltage Range: 43.2-57.6V
• Dimension (W*D*H) (mm): 430 * 150 * 800
• Weight: 72Kg
• Charging Temperature: From 0 to 50℃
• Discharging Temperature: From -10 to 60℃
• Depth of Discharge: 95% DoD
• Nominal Charge: 100A
• Discharge Current: 100A
• Ingress Protection Degree: IP65
• Auxiliary Heating: Standard
• Cooling Type: Natural convection
• Humidity: ≤95%
• Communication: CAN / RS485 / WiFi / Bluetooth
• Battery Safety: IEC 62619 / IEC 63056 / CE / RED
• Transportation Certification: UN38.3
• Warranty: 12 years
