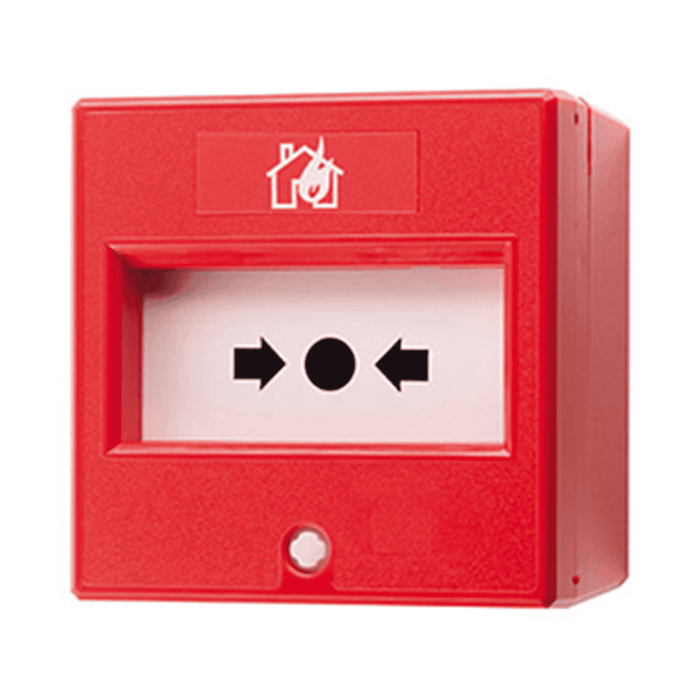

ESP Surface Mounting Resettable Red Call Point

by ESP
Original price £8.39 - Original price £8.39
Original price
£8.39 - £8.39
Current price £8.39

This red surface call point is a robust, resettable device designed for reliable operation. Constructed to survive in a diverse range of temperatures from -10 to 60 degrees celsius. With a nominal operating voltage of 24VDC, it weighs a mere 150 grams and offers superior building flexibility due to its high humidity resistance.

Dimensions & Attributes

  • Dimensions 90mm x 57mm x 90mm
  • Material ABS; Red
  • Type of the frangible element A
  • Wire Gauge 0.4mm - 2.0mm TWIN
  • Weight 150g
  • Warranty 3 Years
  • Power Operating Voltage 9 - 30 VDC
  • Nominal Operating Voltage 24 VDC
  • Current Consumption in alarm state 38mA/24V
  • Environment Ingress Protection IP40
  • Relative Humidity Resistance (93±3)% @40°C
  • Operating Temperature -10°C to 60°C
